Level-Up System
$1.25 - $235.14
Tags:
. . the raised floor system with fall-through protection - PATENTED PRODUCT
Level Up is the ultimate solution for all types of raised external floor installations in public areas where safety and functionality are paramount considerations. It is very quick to install and it guarantees a safe and stable surface. Designed to meet high specification architectural requirements, Level-Up is 100% made in Italy by Dakota.

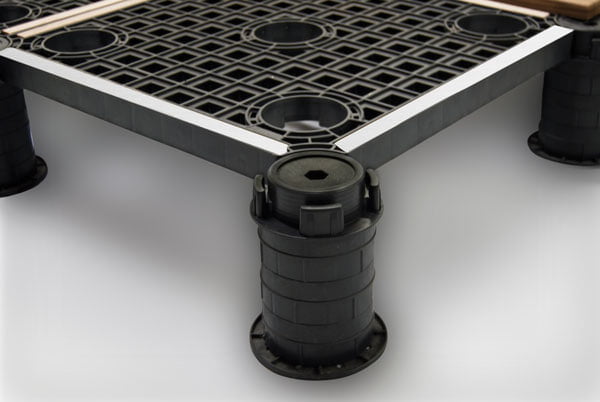

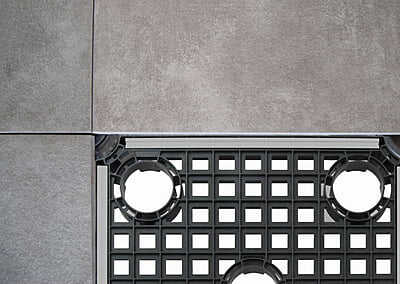

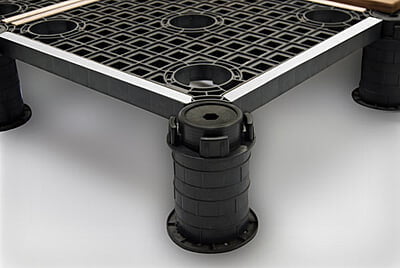

The Level-Up system is a patented design from Dakota that allows the creation of elevated, load-bearing structures. Level-Up is adjustable in height thanks to its pedestal style adjustable supports, with a minimum height 48mm (1⅞”) for the laying surface onto which pavers and tiles of any type, shape or size can be installed. The structure is made of a specific plastic compound material which is reinforced by galvanized steel profiles. Level up guarantees high safety standards and will prevent fall through in the event of any breakage or displacement of the floor covering materials.
Level-Up is easy to assemble, versatile and functional. It is a practical and safe solution for raised floors, enabling easy removal for inspection and/or for maintenance intervention. With this system, it is possible to change the floor surface tiling or covering, or elements beneath like pipes and cabling, at any time thus providing support for the evolution of spaces, without compromising their functionality.
The Level-Up system is a patented design from Dakota that allows the creation of elevated, load-bearing structures. Level-Up is adjustable in height thanks to its pedestal style adjustable supports, with a minimum height 48mm (1⅞”) for the laying surface onto which pavers and tiles of any type, shape or size can be installed. The structure is made of a specific plastic compound material which is reinforced by galvanized steel profiles. Level up guarantees high safety standards and will prevent fall through in the event of any breakage or displacement of the floor covering materials.
Level-Up is easy to assemble, versatile and functional. It is a practical and safe solution for raised floors, enabling easy removal for inspection and/or for maintenance intervention. With this system, it is possible to change the floor surface tiling or covering, or elements beneath like pipes and cabling, at any time thus providing support for the evolution of spaces, without compromising their functionality.
Component
Choose Quantity
Product Details
| Code | Product | Size mm (in.) WxDxL | Pk | Pallet Qty. | UM |
|---|---|---|---|---|---|

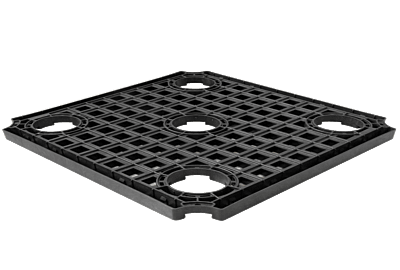

| TER09-1125 | Laying Module | 600 x 600 x 38 (24 x 24 x 1½) | 15 | 60 pcs. | 1 pc. |
| TPOZ95-1313 | Galvanized Reinforcement Bar | 34 x 482 x 19 (1⁵⁄₁₆ x 19 x ¾) | 30 | 2,820 pcs. | 1 pc. |

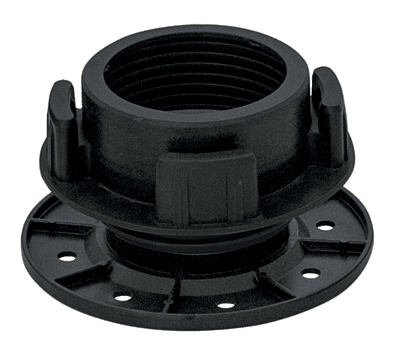

| TER09-1124 | 38 pcs. adjustable support for Level-Up + 33 pcs Rubber Tile Spacers (TER09-1131) | from 48 to 74 (from 1⅞ to 2¹⁵⁄₁₆) | 1 box | 15 boxes. | box |

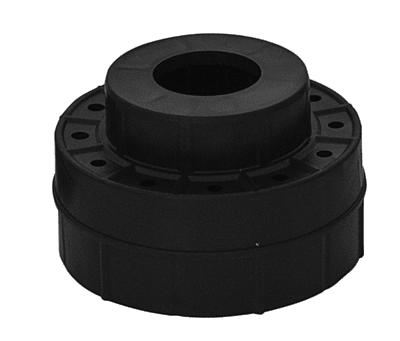

| TER09-1130 | Extension h. 25mm (1") | h. 25mm (h. 1") | 38 | 2,128 pcs. | 1 pc. |

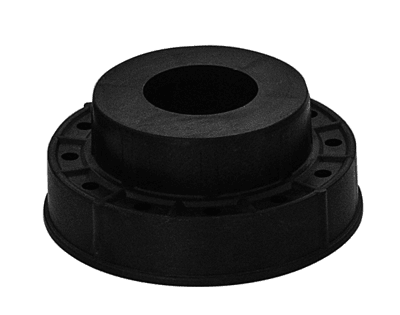

| TER09-1129 | Extension h. 50mm (2") | h. 50mm (h. 2") | 38 | 1,064 pcs. | 1 pc. |
| TER09-1119 | Hexagonal Height Adjustment pipe wrench | hex size 20mm (hex. ¹³⁄₁₆") | 5 | - | 1 pc. |
Download Legend
PDF GREEN=Specifications
PDF RED = Tech. Data
PDF RED = Tech. Data
