Fixed height tile support - Box of 200 pcs.
$156.00

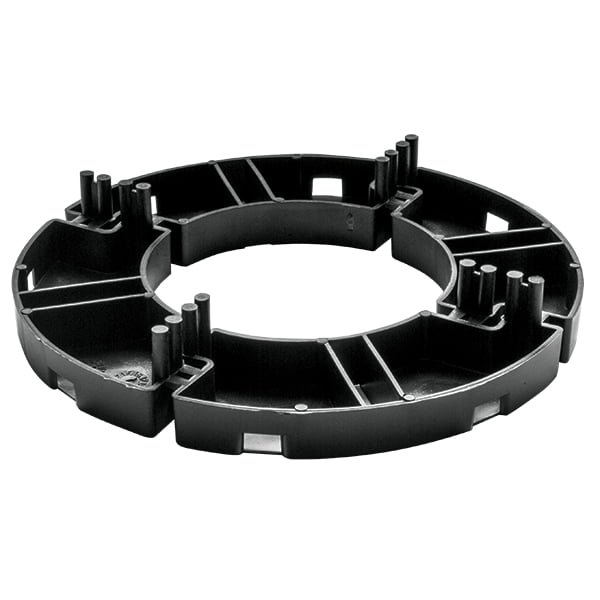

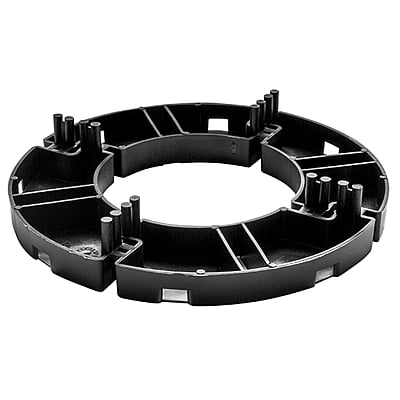

This budget, molded polypropylene, fixed height Paver Support 9/16” (14mm) high with water channels in base and 4mm (⁵⁄₃₂") wide spacer tabs allows perfect spacing of pavers or slabs. This product is weather-proof and suited for most types of pavers and slabs laid on pre-leveled grit or hard surfaces.
The base of the paver support has a smooth profile which minimises the possibility of damage when used on top of bituminous or other membranes. The base is designed to split into quadrants or halves for use at edges and corners.
Spacer adjustment rings, in 1mm or 3mm (³⁄₆₄" and ⅛") thicknesses are available to compensate for minor variations in the levels of the laying surface. The spacers can be stacked for larger adjustments and, like the tile support, are easily divided into halves or quadrants for use where differences in level are found between adjoining tiles.
An anti-noise rubber shim, 1mm thick, can be inserted into the paver support. It is used to provide more friction between the tile and stand and to decrease footfall noise.
Paver support and levelers made of PP (polypropylene).
SKU
TER09-1120 Choose Quantity
Product Details
| Code | Ref. | Product | Size mm (in.) | Pk | Pallet Qty. |
|---|---|---|---|---|---|
| TER09-1120 | 01 | Fixed height paver stand | h. 14 (h. ⁹⁄₁₆) | 360 | 5,760 |
| TER09-1121/1 | 02 | Leveling Shim | thick. 1 (thick. ³⁄₆₄) | 1,000 pcs. | 30,000 |
| TER09-1121 | 03 | Leveling Shim | thick. 3 (thick. ⅛) | 500 pcs. | 10,000 |
| TER09-1147G | 04 | Anti-noise rubber shim for paver stand | thick. 1 (thick. ³⁄₆₄) | 120 pcs. | 15,120 |
Download Legend
PDF GREEN=Specifications
PDF RED = Tech. Data
PDF RED = Tech. Data
