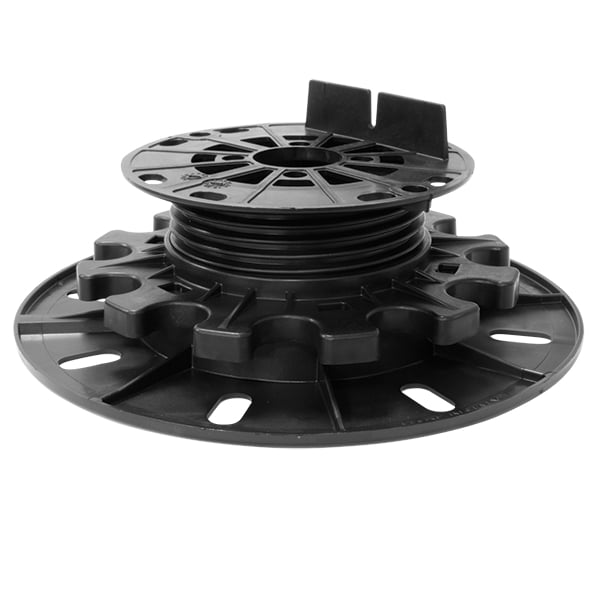

Arkimede® 35 standard profile - Head for joists Box of 30 pcs.
Each Arkimede® joist pedestal comprises a base plate, threaded adjustment collar and support head. Adjustable from 35mm to 60mm (1⅜" - 2⅜'') as standard. Clip in extenders in 25mm, 50mm, 100mm (1'', 2'', 4'') heights are available.
Base laying surface: 314 cm² (49 sq.in). Head diameter: 120mm (4¾")
The base includes water drainage channels.
Made of recycled PP (polypropylene).
Used in external areas for roof gardens, terraces, pavements and decks.
Each support is composed of a base plate, an adjuster ring and a threaded head section, with 1 fixed tab for joists.
An easy to operate threaded adjustment ring makes raising or lowering the head really quick and precise. Height adjustments can be made without removing or lifting the joist thus allowing for extremely easy and fast installation.
Details
- CodeTER09-1143/1A
- ProductArkimedes 35 - Decking
- Size mm (in.) WxDxL35mm to 60mm (1⅜" - 2⅜'')
- Pack30 pcs.
- Pallet Qty.1,200 pcs.
