Arkimede® 60 higher profile for pavers - 4mm (5/32") spacer tabs - Box of 30 pcs.

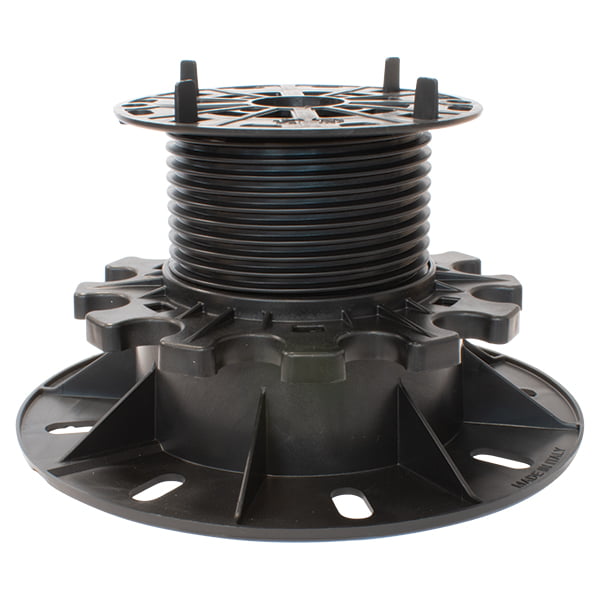

Each pedestal comprises a base stand, threaded adjustment collar and support head. Adjustable from 60mm to 115mm (2⅜" - 4½'') as standard. Clip in extenders in 50mm, 100mm (2", 4'') heights are available.
Base laying surface: 314 cm² (49 sq.in). Head diameter: 120mm (4¾").
The base includes water drainage channels.
Made of recycled PP (polypropylene).
TER09-1143/G - This is a special molded 5/64" (2 mm) thick rubber ring to fit to the top of the support head to provide acoustic damping by reducing transmitted noise through the pedestal. Available as a separate part.
Each support is composed of a threaded self-leveling head section, with 4 tabs 5/32" (4mm) in width for tile or paver spacing. The spacer tabs are individually removable to enable the supports to be used in areas where no separation is required, such as under the centers of large slabs, or at the perimeters.
An easy to operate threaded adjustment ring makes raising or lowering the head really quick and precise. Height adjustments can be made without removing the paver or tile thus allowing for extremely easy and fast installation.
Details
- CodeTER09-1163/4A4M
- ProductArkimedes 60 - Paving Spacer tabs 4mm (⁵⁄₃₂'')
- Size mm (in.) WxDxL60mm to 115mm (2⅜'' - 4½'')
- Pack30 pcs.
- Pallet Qty.450 pcs
