25 Self-leveling Head Hercules with 4mm (⁵⁄₃₂") spacer tabs - Box of 30 pcs.
$230.40

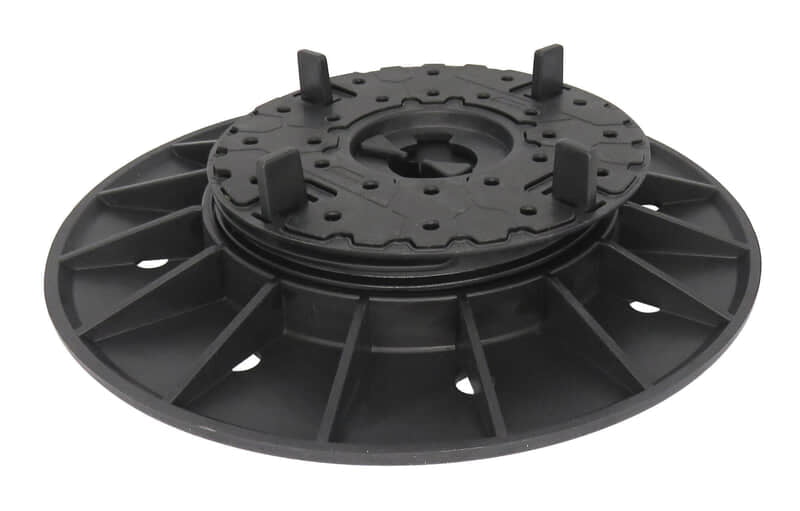

Hercules pedestal support for pavers, with adjustable height from 25mm to 37mm (1'' to 1½''). Each pack contains the complete disassembled support with base, screw and self-leveling head for paver support with four spacer tabs. The heads are equipped with integrated anti-noise rubber inlays.The pedestals can be adjusted from below by rotating the base and head or, in the case of paver installations, the finalization of the adjustment of the support takes place from above with the pavers installed, using the special key.
Made of recycled PP (polypropylene).
Used in external areas for roof gardens, terraces, pavements and decks.
SKU
TER09-1183/4L25 Choose Quantity
Product Details
Specifications
This ‘top of the range’ professional pedestal support system is designed for installations where high loads may be encountered, such as in public areas, and is also ideal for high-rise applications. The Hercules pedestals have large, load spreading, 210mm (8¼'') or 230mm (9'') diameter bases with heavy support ribs making them capable of supporting up to 3,000kgf (6,600lbf).
The very high load capability ensures these pedestals are suitable for use across a very wide range of leveling applications from patios, decks and roof gardens through to external buildings, log cabins, large hot tubs, surface pools and more.Download Legend
PDF GREEN=Specifications
PDF RED = Tech. Data
PDF RED = Tech. Data
Details
- CodeTER09-1183/4L25
- ProductHercules 25 Self-leveling Head Paver Support - 4mm (⁵⁄₃₂'') spacer tabs
- Size mm (in.) WxDxL25mm to 37mm (1'' - 1½'')
- Pack30 pcs.
- Pallet Qty.720 pcs.
