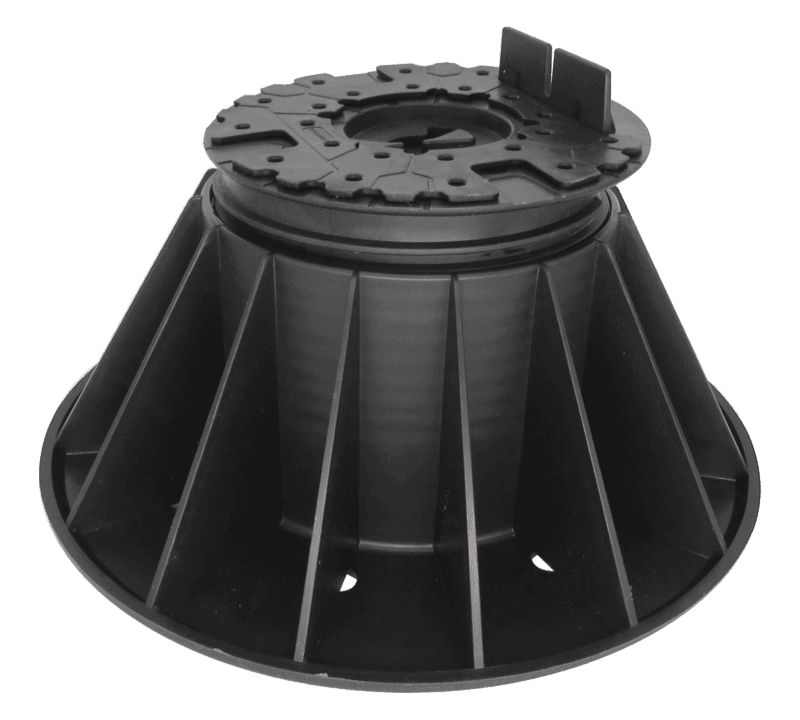

94 Self-leveling Head Hercules for joists - Box of 20 pcs.
Hercules pedestal support for joists, with adjustable height from . Each pack contains the complete disassembled support with base, screw and self-leveling head for joist support with a single securing fin. The heads are equipped with integrated anti-noise rubber inlays.
The 94 Hercules pedestal can be extended by using one or more screw-in extender sections - available separately.
The base includes water drainage channels.
Made of recycled PP (polypropylene).
Used in external areas for roof gardens, terraces, pavements and decks.This ‘top of the range’ professional pedestal support system is designed for installations where high loads may be encountered, such as in public areas, and is also ideal for high-rise applications. The Hercules pedestals have large, load spreading, 210mm (8¼'') or 230mm (9'') diameter bases with heavy support ribs making them capable of supporting up to 3,000kgf (6,600lbf).
The very high load capability ensures these pedestals are suitable for use across a very wide range of leveling applications from patios, decks and roof gardens through to external buildings, log cabins, large hot tubs, surface pools and more. The pedestals are ideal for large decks with long joist spans (using 6'' or 12'' height joists), reducing the number of support points required.Download Legend
PDF RED = Tech. Data
Details
- CodeTER09-1183/1L94
- ProductHercules 94 Self-leveling Head Decking Support with 1 fixing tab
- Size mm (in.) WxDxL94mm to 150mm (3¹¹⁄₁₆'' - 6'')
- Pack20 pcs.
- Pallet Qty.160 pcs.
