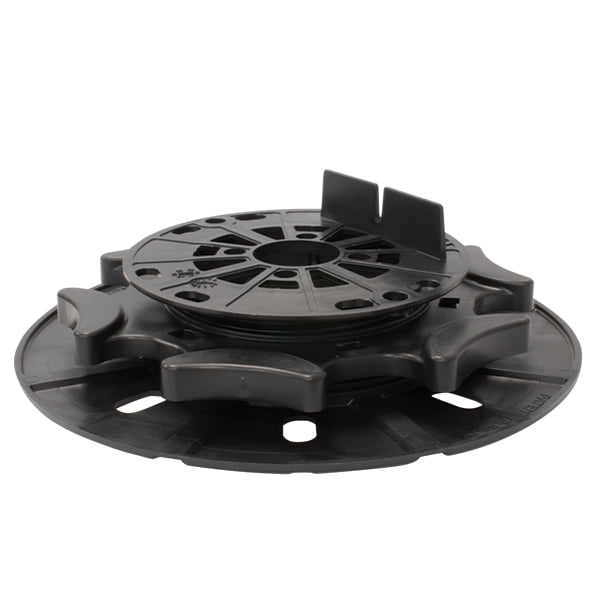

Arkimede® 18 low profile (Nano) - Head for joists - Box of 30 pcs.
The Low-Profile Arkimede® pedestal is a specially designed support for use in areas where low threshold heights are encountered.
Adjustable from 18mm to 27mm (¾" to 1¹⁄₁₆") as standard, or 27mm to 36mm (1¹⁄₁₆" to 1⁷⁄₁₆") with the 9mm (⅜") extender ring supplied with each pedestal. The head is wide enough to accept joists up to 3" (75mm) wide.
Base laying surface: 314 cm² (49 sq.in). Head diameter: 120mm (4¾").
The base includes water drainage channels.
Made of recycled PP (polypropylene).
Used in external areas for roof gardens, terraces, pavements and decks. Internally for tiled and wood flooring.
An easy to operate threaded adjustment ring makes raising or lowering the head really quick and precise. Height adjustments can be made without removing or lifting the joist thus allowing for extremely easy and fast installation.
Download Legend
PDF RED = Tech. Data
Details
- CodeTER09-1145/1A
- ProductArkimedes 18 - Decking
- Size mm (in.) WxDxL18mm to 36mm (¾" - 1⁷⁄₁₆")
- Pack30 pcs.
- Pallet Qty.1,200 pcs.
