37 Self-leveling Head Hercules for joists - Box of 30 pcs.
$265.20

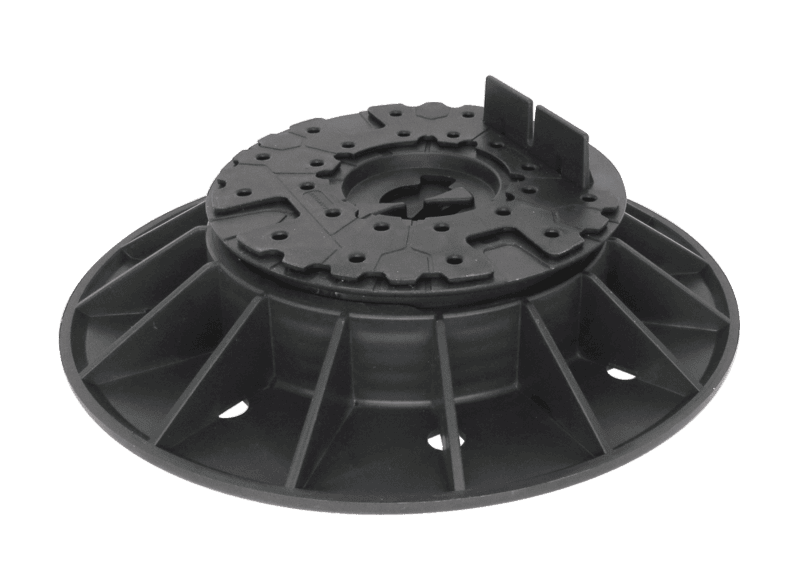

Hercules pedestal support for joists, with adjustable height from 37mm to 60mm (1½'' to 2⅜''). Each pack contains the complete disassembled support with base, screw and self-leveling head for joist support with one fin. The heads are equipped with integrated anti-noise rubber inlays.The pedestals can be adjusted from below by rotating the base and head.The base includes water drainage channels.
Made of recycled PP (polypropylene).
Used in external areas for roof gardens, terraces, pavements and decks. SKU
TER09-1183/1L37 Choose Quantity
Product Details
Specifications
This ‘top of the range’ professional pedestal support system is designed for installations where high loads may be encountered, such as in public areas, and is also ideal for high-rise applications. The Hercules pedestals have large, load spreading, 210mm (8¼'') or 230mm (9'') diameter bases with heavy support ribs making them capable of supporting up to 3,000kgf (6,600lbf).
The very high load capability ensures these pedestals are suitable for use across a very wide range of leveling applications from patios, decks and roof gardens through to external buildings, log cabins, large hot tubs, surface pools and more.Download Legend
PDF GREEN=Specifications
PDF RED = Tech. Data
PDF RED = Tech. Data
Details
- CodeTER09-1183/1L37
- ProductHercules 37 Self-leveling Head Decking Support with 1 fixing tab
- Size mm (in.) WxDxL37mm to 60mm (1½'' - 2⅜'')
- Pack30 pcs.
- Pallet Qty.480 pcs.
