Arkimede® Side Mounting Plate Kit for lateral finishing - 10 pcs
$72.30
Plastic Kit for lateral finishing

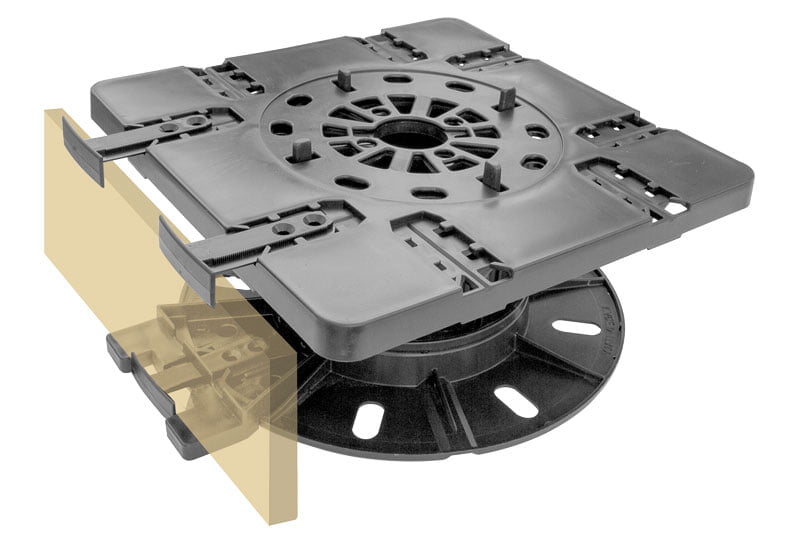

The Top Plate and Lateral Clip are made of PP, they are used for the lateral (vertical) finishing of the edges of the raised floor in the absence of a lateral wall. Specifically designed for application with Arkimedes paving supports only.
Made of PP (Polypropylene).
Kit comprises: Kit of 10 top plates, 10 base supports and 30 tile fixing clips.
SKU
TER09-1152/3BPL Choose Quantity
Product Details
Specifications

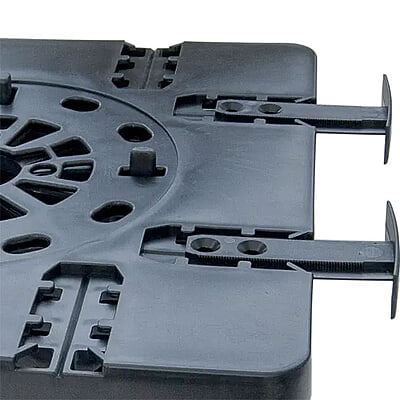

The top plate and adjustable clips, combined with the base support retainers that clip into the pedestal base plates, allow the vertical fixing of tiles of different thickness, from 8 to 38 mm (⁵⁄₁₆" to 1½"), in a very easy and simple way.

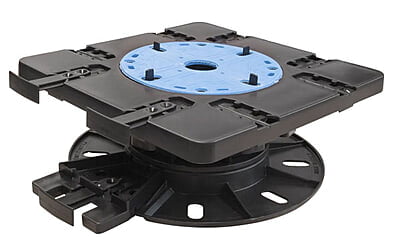

The Lateral Finishing Kit will work with Arkimedes 35, 41, 60 and 115 paving pedestal supports.
Download Legend
PDF GREEN=Specifications
PDF RED = Tech. Data
PDF RED = Tech. Data
Details
- CodeTER09-1152/3BPL
- ProductKit of 10 plates, 10 lateral base supports and 30 tile fixing clips for lateral finishing
- Size mm (in.) WxDxL204 x 204 (8 x 8)
- PackSet of 10pcs.
- Pallet Qty.144 sets.
