150 Self-leveling Head Hercules for joists - Box of 15 pcs.
$291.90

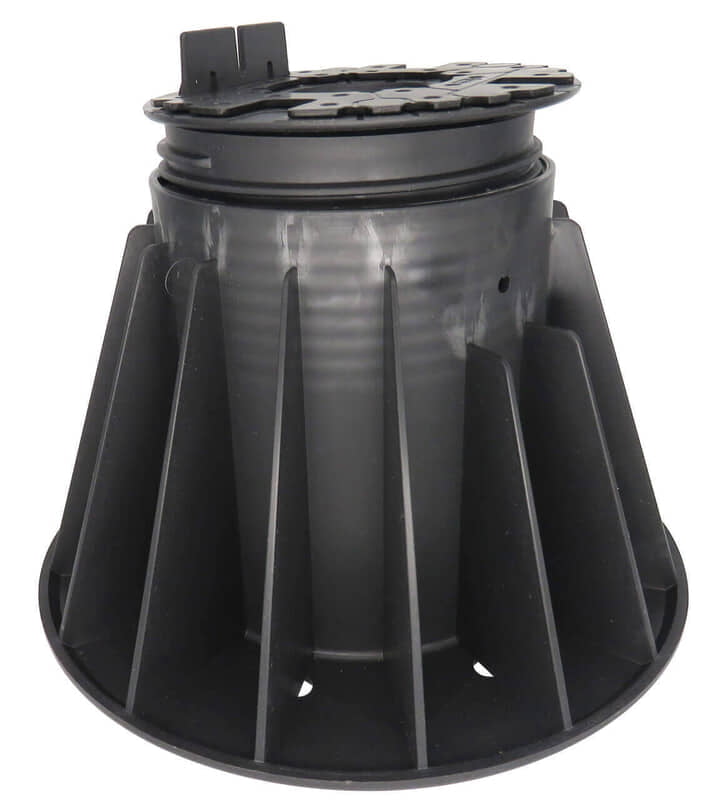

Hercules pedestal support for joists, with adjustable height from 150mm to 270mm (6'' to 10⅝''). Each pack contains the complete disassembled support with base, screw and self-leveling head for joist support with a single securing fin. The heads are equipped with integrated anti-noise rubber inlays.
The 150 Hercules pedestal can be extended by using one or more screw-in extender sections - available separately.
The base includes water drainage channels.
Made of recycled PP (polypropylene).
Used in external areas for roof gardens, terraces, pavements and decks.
The 150 Hercules pedestal can be extended by using one or more screw-in extender sections - available separately.
The base includes water drainage channels.
Made of recycled PP (polypropylene).
Used in external areas for roof gardens, terraces, pavements and decks.
SKU
TER09-1183/1L150 Choose Quantity
Product Details
Specifications
This ‘top of the range’ professional pedestal support system is designed for installations where high loads may be encountered, such as in public areas, and is also ideal for high-rise applications. The Hercules pedestals have large, load spreading, 210mm (8¼'') or 230mm (9'') diameter bases with heavy support ribs making them capable of supporting up to 3,000kgf (6,600lbf).The very high load capability ensures these pedestals are suitable for use across a very wide range of leveling applications from patios, decks and roof gardens through to external buildings, log cabins, large hot tubs, surface pools and more. The pedestals are ideal for large decks with long joist spans (using 6'' or 12'' height joists), reducing the number of support points required.
Download Legend
PDF GREEN=Specifications
PDF RED = Tech. Data
PDF RED = Tech. Data
Details
- CodeTER09-1183/1L150
- ProductHercules 150 Self-leveling Head Decking Support with 1 fixing tab
- Size mm (in.) WxDxL150mm to 270mm (6'' - 10⅝'')
- Pack15 pcs.
- Pallet Qty.120 pcs.
