Arkimede® 115 extra high profile for pavers - 4mm (⁵⁄₃₂") spacer tabs - Box of 15 pcs.
Pedestal System & Risers - 115 to 220 mm (4½'' to 8⅔'')

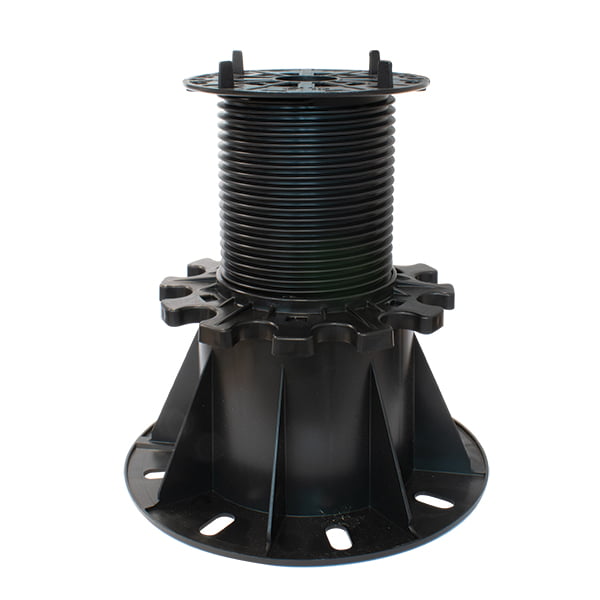

Each pedestal comprises a base stand, threaded adjustment collar and support head. Adjustable from 115mm to 220mm (4½ - 8⅔'') as standard. Clip in extenders 100mm ( 4'') in height are available.
Base laying surface: 314 cm² (49 sq.in). Head diameter: 120 mm (4¾").
Available versions:
- paver support with 4 spacer tabs of 2 mm (⁵⁄₆₄") thickness.
- paver support with 4 spacer tabs of 4 mm (⁵⁄₃₂") thickness.
- joist support with 1 tab for decking and flooring.
The base includes water drainage channels.
Made of recycled PP (polypropylene).
Used in external areas for roof gardens, terraces, pavements and decks.
Each support is composed of a threaded head section, with a vertical flange for fixing joists into position, or with 4 tabs, 4mm (5/32") in width, for tile or paver spacing. Spacer tabs are individually removable to enable the supports to be used in areas where no separation is required, such as under the centres of large slabs, or at T-joints and sides.
An easy to operate threaded adjustment ring makes raising or lowering the head really quick and precise. Height adjustments can be made without removing the paver or tile thus allowing for extremely easy and fast installation.
Download Legend
PDF RED = Tech. Data
Details
- CodeTER09-1163/4A4M
